Resin Library

Formlabs printers are able to work with different types of resins and  will certainly meet your requirements. Convince yourself about the quality of the printing and have a sample print sent to you. Artsupport will send the sample directly to you, free of charge.

STANDARD RESIN

Clear Resin

Clear Resin polishes to near optical transparency, making it ideal for working with light or showcasing internal features.

  • High resolution
  • Surface finish
  • Transparent
  • No post curing necessary

STANDARD RESIN

Grey

Grey Resin is perfect for general purpose prototyping and design, excellent for capturing small details.

  • High resolution
  • Surface finish
  • Matte finish
  • No post curing necessary

STANDARD RESIN

White

White Resin captures smooth surfaces and details, making it great for presentation-ready pieces or as a base for painted prints.

  • High resolution
  • Surface finish
  • No post curing necessary

STANDARD RESIN

Black

Black Resin is formulated for models with very small features and intricate details.

  • High resolution
  • Surface finish
  • Matte finish
  • No post curing necessary

STANDARD RESIN

Draft

Draft Resin is suitable for printing large, bulky parts quickly. With a 300 micron layer height, it has acceptable accuracy for prototyping needs while enabling faster design iterations.

ENGINEERING

Tough 2000

This pump housing demonstrates the strength of Tough 2000 Resin. Tough 2000 Resin is the strongest and stiffest material in the family of Tough and Durable Resins, making it ideal for prototyping sturdy parts that should not bend easily.

  • Ultimate Tensile Strength: 46 MPa
  • Tensile Modulus 2.2 GPa
  • Notched IZOD: 40 J/m
  • Heat Deflection Temp. @ 0.45 MPa: 63 °C

ENGINEERING

Tough 1500

Tough 1500 Resin produces stiff and pliable parts that bend and spring back quickly under cyclic loading. The combination of stiffness and elongation allows this spring to compress and return to shape repeatedly. This sample is a 3 piece assembly - a base, a spring shipped on supports, and a top to press down onto the spring.

  • Ultimate Tensile Strength: 33 MPa
  • Tensile Modulus 1.5 GPa
  • Notched IZOD: 67 J/m
  • Heat Deflection Temp. @ 0.45 MPa: 52 °C

ENGINEERING

High Temp

High Temp Resin offers a heat deflection temperature (HDT) of 238 °C @ 0.45 MPa. Use it to print detailed, precise prototypes with high temperature resistance.

  • Key applications include parts for hot air, gas, and fluid flow; heat-resistant mounts, housings, and fixtures; and molds and inserts.

  • Print resolutions: 100, 50, and 25 microns. Post-curing required.

ENGINEERING

Durable

Durable Resin is a wear-resistant, ductile material with low modulus and high impact strength, for prototyping parts which require deformation and a smooth, glossy finish.

  • Ultimate Tensile Strength: 31.8 MPa
  • Tensile Modulus: 1.26 GPa
  • Heat Deflection Temp. @ 0.45 MPa: 43.3 °C

ENGINEERING

Grey Pro

Grey Pro Resin is a versatile prototyping material, suited for functional parts and rigorous testing.


  • Ultimate Tensile Strength: 61.2 MPa
  • Tensile Modulus: 2.6 GPa
  • Elongation: 13.0%

ENGINEERING

Rigid

Glass-reinforced Rigid Resin offers very high stiffness and a polished finish and is great for precise printing of strong, thin features.


  • Ultimate Tensile Strength: 75.2 MPa
  • Tensile Modulus: 4.1 GPa
  • Flexural Modulus: 3.7 GPa

ENGINEERING

Flexible

Flexible Resin simulates an 80A durometer rubber, and makes parts that can bend and compress. Requires UV post-cure. Supports print resolutions: 100 and 50 microns.

  • Ultimate Tensile Strength: 7.7 – 8.5 MPa
  • Elongation at Failure: 75 – 85 %
  • Tear Strength: 13.3 – 14.1 kN/m
  • Shore Hardness: 80 – 85 A

ENGINEERING

Elastic

Elastic Resin, our softest Engineering Resin, is suitable for parts that will bend, stretch, compress, and hold up to repeated cycles without tearing. This sample is a designer's interpretation of a pulmonary artery.

  • Ultimate Tensile Strength: 3.32 MPa
  • Elongation at Failure: 160 %
  • Tear Strength: 19.1 kN/m
  • Compression set at 70C: 9%
  • Shore Hardness: 50 A

JEWELLERY

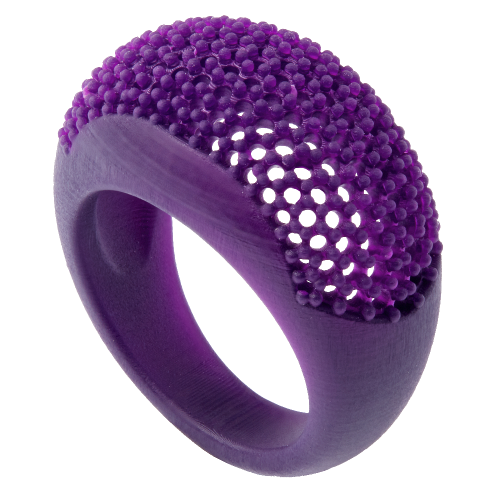

Castable Wax

Castable Wax is a 20% wax-filled material for reliable casting with zero ash content and clean burnout. It accurately captures intricate features and offers the smooth surfaces stereolithography 3D printing is known for.

  • No post-curing necessary
  • Suitable for custom try-ons
  • Allows direct investment casting

See the full Formlabs resin library on our website
