3D Printing Materials for Engineering, Manufacturing, and Product Design

Formlabs library of versatile, reliable Engineering Resins is formulated to help you reduce costs, iterate faster, and bring better experiences to market. Convince yourself about the quality of the printing and have a sample print sent to you.
Artsupport will send the sample directly to you, free of charge.

Clear Resin

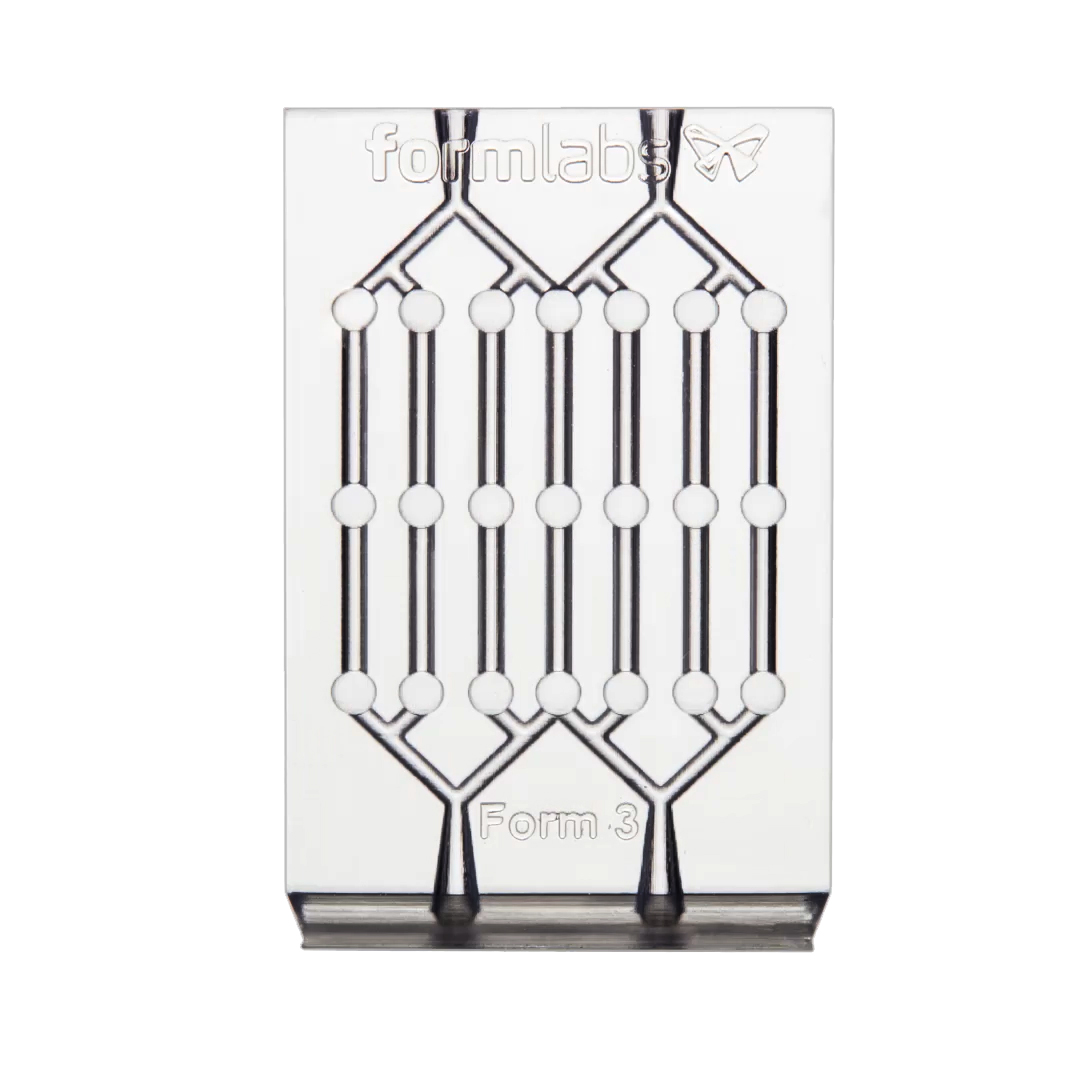

Clear Resin polishes to near optical transparency, making it ideal for working with light or showcasing internal features.

High resolution
Surface finish
Transparent
No post curing necessary

Grey Resin

Grey Resin is perfect for general purpose prototyping and design, excellent for capturing small details.

High resolution
Surface finish
Matte finish
No post curing necessary

White Resin

White Resin captures smooth surfaces and details, making it great for presentation-ready pieces or as a base for painted prints.

High resolution
Surface finish
No post curing necessary

Black Resin

Black Resin is formulated for models with very small features and intricate details.

High resolution
Surface finish
Matte finish
No post curing necessary

Draft Resin

Draft Resin prints up to four times faster than Formlabs standard materials, making it ideal for initial prototypes and rapid iterations to help bring products to market faster. Parts printed with Draft Resin exhibit a smooth grey finish and high accuracy. Use 200 micron settings for fast print speeds, or use 100 micron settings for models with finer details.

Initial prototypes
Rapid iterations
High throughput

Grey Pro Resin

Grey Pro Resin is a versatile prototyping material, suited for functional parts and rigorous testing.

Ultimate Tensile Strength: 61.2 MPa
Tensile Modulus: 2.6 GPa
Elongation: 13.0%

Tough 1500 Resin

Tough 1500 Resin produces stiff and pliable parts that bend and spring back quickly under cyclic loading. The combination of stiffness and elongation allows this spring to compress and return to shape repeatedly. This sample is a 3 piece assembly - a base, a spring shipped on supports, and a top to press down onto the spring.

Ultimate Tensile Strength: 33 MPa
Tensile Modulus 1.5 GPa
Notched IZOD: 67 J/m
Heat Deflection Temp. @ 0.45 MPa: 52 °C

Tough 2000 Resin

This pump housing demonstrates the strength of Tough 2000 Resin. Tough 2000 Resin is the strongest and stiffest material in the family of Tough and Durable Resins, making it ideal for prototyping sturdy parts that should not bend easily.

Ultimate Tensile Strength: 46 MPa
Tensile Modulus 2.2 GPa
Notched IZOD: 40 J/m
Heat Deflection Temp. @ 0.45 MPa: 63 °C

Durable Resin

Durable Resin is a wear-resistant, ductile material with low modulus and high impact strength, for prototyping parts which require deformation and a smooth, glossy finish.

Ultimate Tensile Strength: 31.8 MPa
Tensile Modulus: 1.26 GPa
Heat Deflection Temp. @ 0.45 MPa: 43.3 °C

Rigid 4000 Resin

Glass-reinforced Rigid Resin offers very high stiffness and a polished finish and is great for precise printing of strong, thin features.

Ultimate Tensile Strength: 75.2 MPa
Tensile Modulus: 4.1 GPa
Flexural Modulus: 3.7 GPa

ESD Resin

ESD Resin is a cost-effective solution for producing static-dissipative parts designed to endure use on the factory floor. Use this 3D printed probe holder to hold multimeter probes for you while working with critical electronics. Test the resistivity of the probe holder with a surface resistivity meter.

Ultimate Tensile Strength 44.2 MPa
Tensile Modulus 1.937 GPa

Flexible 80A Resin

Flexible Resin simulates an 80A durometer rubber, and makes parts that can bend and compress. Requires UV post-cure. Supports print resolutions: 100 and 50 microns.

Ultimate Tensile Strength: 7.7 – 8.5 MPa
Elongation at Failure: 75 – 85 %
Tear Strength: 13.3 – 14.1 kN/m
Shore Hardness: 80 – 85 A

Elastic 50A Resin

Elastic Resin, our softest Engineering Resin, is suitable for parts that will bend, stretch, compress, and hold up to repeated cycles without tearing. This sample is a designer's interpretation of a pulmonary artery.

Ultimate Tensile Strength: 3.32 MPa
Elongation at Failure: 160 %
Tear Strength: 19.1 kN/m
Compression set at 70C: 9%
Shore Hardness: 50 A

High Temp Resin

High Temp Resin offers a heat deflection temperature (HDT) of 238 °C @ 0.45 MPa, the highest among Formlabs resins. Use it to print detailed, precise prototypes with high temperature resistance.

High Temp Resin has a heat deflection temperature (HDT) of 238 °C @ 0.45 MPa—the highest among Formlabs resins. Use it to print detailed, precise prototypes with high thermal stability.
Separate Resin Tank required for High Temp Resin V1 and V2.
Supports print resolutions: 100, 50, and 25 microns.
Post-curing required.

Flame Retardant Resin

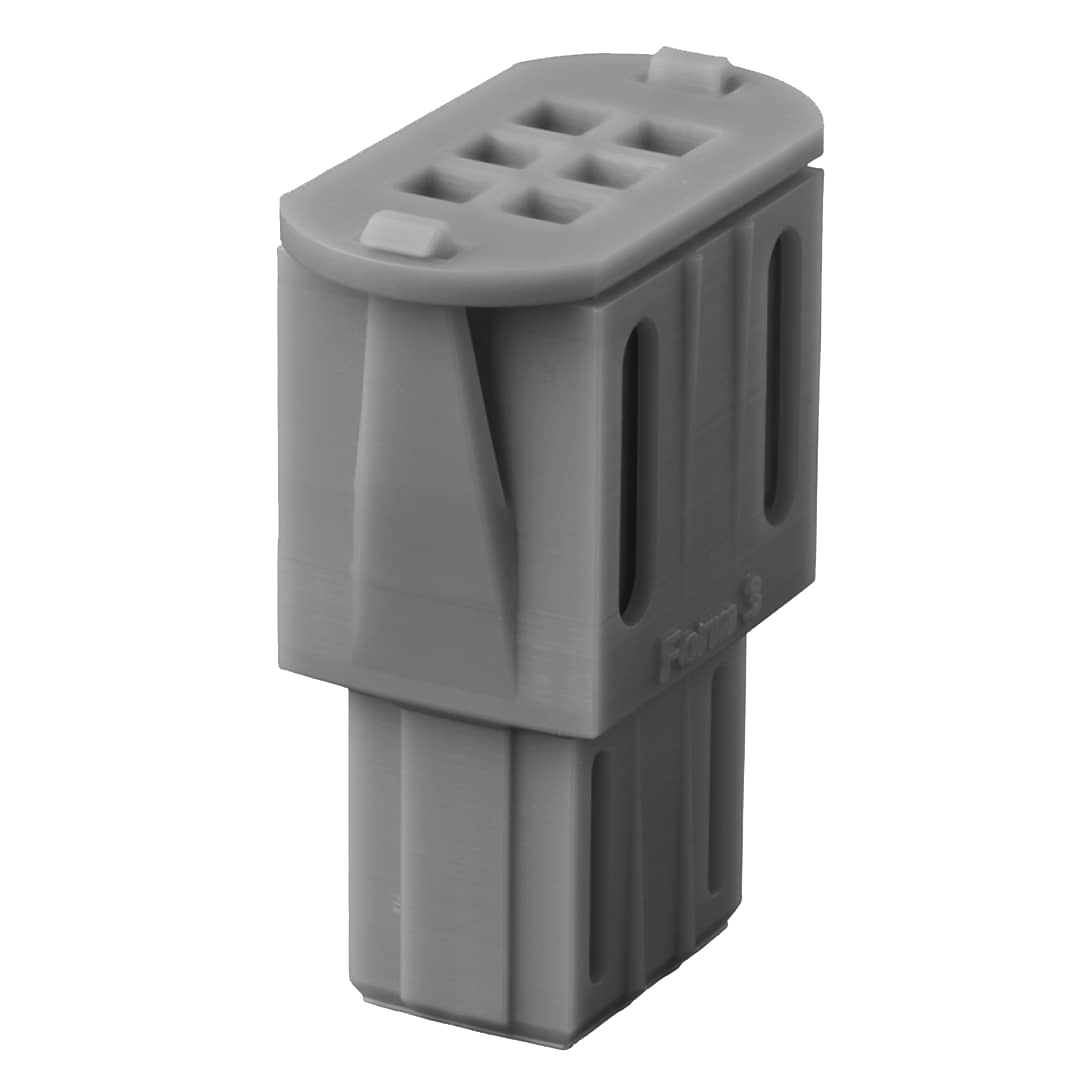

Fabricate stiff, functional, and heat resistant parts that perform well long-term in indoor and industrial environments with high temperatures or ignition sources. This electrical connector features a two-part assembly that snaps together and unlocks with a pair of compliant tabs. The excellent dimensional accuracy and smooth surface finish of FR Resin allows for tight tolerances of interlocking assemblies.

UL 94 V-0 certified and FAR 25.853 rated
Self-extinguishing and halogen-free
Favorable flame, smoke, and toxicity (FST) ratings

Color Kit

The first integrated color mixing solution for resin, not filament, Color Kit enables 3D printing in a range of colors without the manual work of finishing and painting. Field test product concepts more quickly with 3D prints that fit their environment.
